Filters

Primary Disc Filter

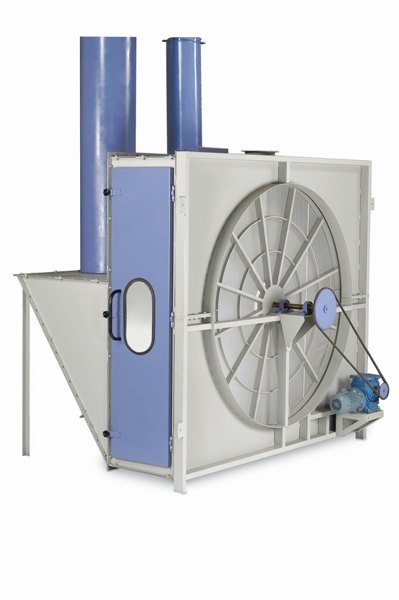

Primary Disk Filter

Continuously rotating Primary Disc Filter is the first stage of Draft Airís Integrated Waste Management. The rotating disc fitted with a filter media separates coarse particle and fibrous waste. The material deposited on the disc is sucked through a suction nozzle by a powerful fan and discharged into a fiber compactor/separator, depending upon the type of waste material; different filter media can be used.

Advantages

  • No pressure fluctuations in the extraction system due to continuous cleaning
  • Space saving installation due to the disc shape and the compact design
  • No fiber contamination of drive elements and easy access by installation behind the prefilter screen Ė easy filter media change
  • The compact and robust design offers the highest degree of reliability and safety

Rotary Drum Filter

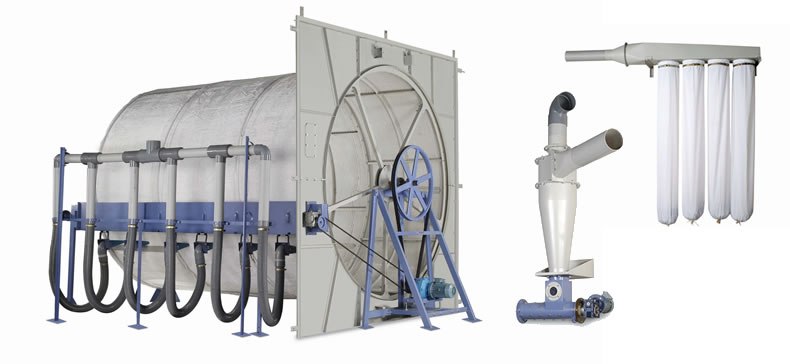

Rotary Drum Filter

Draft Air's Rotary Drum Filters are perforated rotating drum of ample free area fitted with variety of filter media for the type of dust and waste. The material deposited on the filter media is sucked off with smooth sliding nozzles connected to a powerful suction blower through a cyclone and bag filters.

Draft Air's automatic Rotary Filter provides twice the amount of nozzles for efficient and faster collection of micro dust. The micro dust is continuously removed through Cyclone separator/compactor by Ventilator Fan. The higher size filters are provided with 2 Ventilator fans to improve cleaning efficiency.

Advantages

  • Continuous cleaning, therefore no pressure fluctuations within the system
  • Precise adaptation to the total air volume due to the modular design
  • Energy-efficient operation due to low pressure loss
  • Filter chamber accessible for inspection during operation, no shut-down required

Static Filters

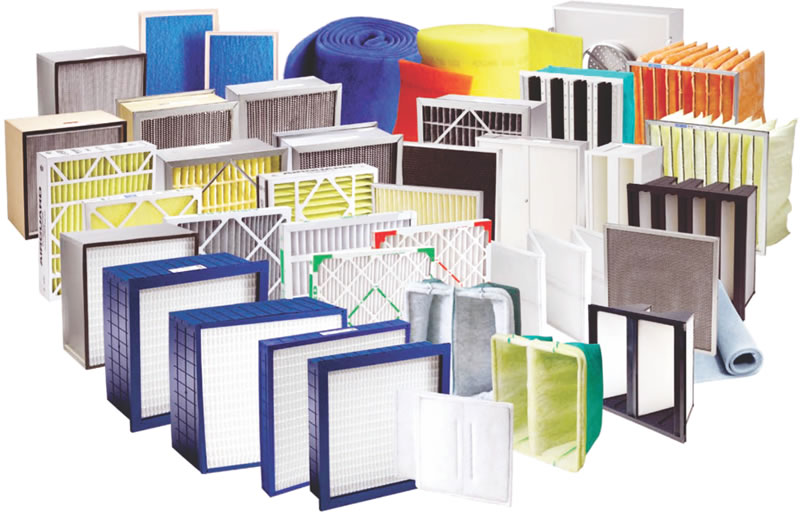

Static Filters

Draft Air offers panel filter in various configuration depending upon the filtration requirement. From 20 microns to 0.3 micron filtration levels can be provided with suitable filter media.
